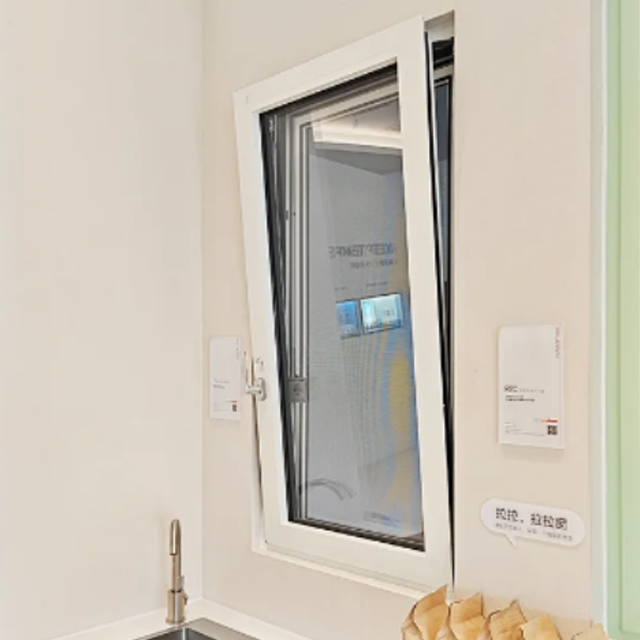

Tilt&Turn Window
Key points
Improved Ventilation, Easy Cleaning, Enhanced Security, Energy Efficiency, Space Saving
Benefits
F3 economical window systems for meeting high demands in terms of operating comfort and burglary resistance.Slim frame design enhances the aesthetic appeal while offers a more expansive view. Featuring an 29/39mm insulating strip design , improves the thermal insulation performance of the window,making it energy-efficient
| Quantity: | |
|---|---|
Product Specifications
Profile Reinforcement | 1.8mm |
Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
Frame Depth | 70mm(Single system) / 90mm(Integrated system) |
Frame Width | 31.2mm(External Side) / 53.2mm(Internal Side) |
Sash Width | 70.4mm |
Max. Leaf Width | 450-1000mm |
Max. Leaf Height | 600-1700mm(normal), 1700-2600mm(floor to ceiling) |
Glass Standard | 30mm(5G+20A+5G) Double Toughened Clear Glass, Filled with Argon Gas |
Glazing Pocket | Less than 43 mm |
Glass Spacer | Black Aluminum Spacer |
Glass Type | Double Panes,Triple Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure...Glass |
Hardware | Belgium SOBINCO, German SIEGENIA, HOPPE, WEHAG(180°） |
Screens | 304 / 316 Stainless Steel, Foldable Nylon Mesh Screen |
Blinds | HANS Manual Blinds, Electric blinds, Solar Powered Build-in Blinds |
Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA Certification |
Warranty | 10 Years - Terms and conditions apply |
Product Features
Energy-saving insulation innovation The window features 29/39mm PA66GF25 insulation with multi-cavity isolation (patented insulation rib design), which reduces heat transfer by 45% compared to standard thermal insulation models. Expanded polyamide cavity and 0.3W/m·K insulation wool achieve a U-value ≤2.0 W/m²·K. Double-layer Low-E glass (optional) further reduces energy costs by 30%, ideal for passive house designs in extreme climates. | Maintenance-Optimized Durability Concealed SIEGENIA hardware is shielded by 1.2mm anodized aluminum panels, eliminating dust traps while enabling tool-free access for hinge adjustments (±3mm). Self-lubricating IGUS® polymer rollers and stainless steel axle sleeves withstand 50,000+ tilt cycles in coastal environments.Seven fluorocarbon finishes (10-year fade resistance) complement minimalist interiors, and removable sashes make cleaning the glass easy in compact spaces. |
Storm-proof hybrid ventilation Four staggered EPDM seals and hidden gutters enable 600Pa waterproofing (GB/T 7106-2019). Tilt mode enables 24/7 all-weather airflow (0.2m³/h·m² @ 15°) when it rains, while fully opening inwards provides 90° clearance for emergency exits. Optional retractable screen (304 stainless steel mesh) blocks insects without compromising 92% of visible transmitted light. | Multi-lock security with child-safe ventilation The SIEGENIA tilt and turn system integrates multi-point RC2 anti-theft locking and double inward opening (glass + sash). When tilted, the 15° vent position prevents intrusion while maintaining IPX8 sealing. Reinforced 6063-T6 frame (1.8mm wall thickness) and IGCC/ AS4666/AS2208 certified tempered glass resist 1,100N strong attack, suitable for high-rise coastal residences. |
Download
●
2025 Rolansini Window and Door Catalog.pdf;
● F3 Tilt&Turn Window Profile Section;
● Tilt&Turn Window Measurement&Installation;
● Care&Maintenance Guaidance.
