Product Specifications
| Profile Reinforcement | 1.8-3.0mm |
| Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
| Frame Depth | 135mm |
Frame Width | 78mm |
| Sash Depth | 32mm |
| Sash Width | 34mm |
| Max. Leaf Width | 400-1800mm(Active Sash), 300-4200mm(Fixed Sash) |
| Max. Leaf Height | 500-1500mm(Active Sash), 400-4200mm(Fixed Sash) |
| Glass Standard | 26mm(5G+16Ar+5G)Double toughened Clear Glass, Filled with Argon Gas |
| Glazing Pocket | Less than 26 mm |
| Glass Spacer | Black Aluminum Spacer |
| Glass Type | Double Panes, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure,Reeded...Glass |
| Hardware | China top brand Bogo Hidden Side lock, PAG Double lower pulley(Load-bearing capacity 200KG), Anti-sway and anti-lift upper wheel |
| Screens | Black 304 Stainless Steel Mesh Screens |
| Blinds | HANS Manual Blinds |
| Type | 3 Track 2 Pane, 3 Track 4 Pane |
| Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA Certification |
| Warranty | 10 Years - Terms and conditions apply |
Product Features

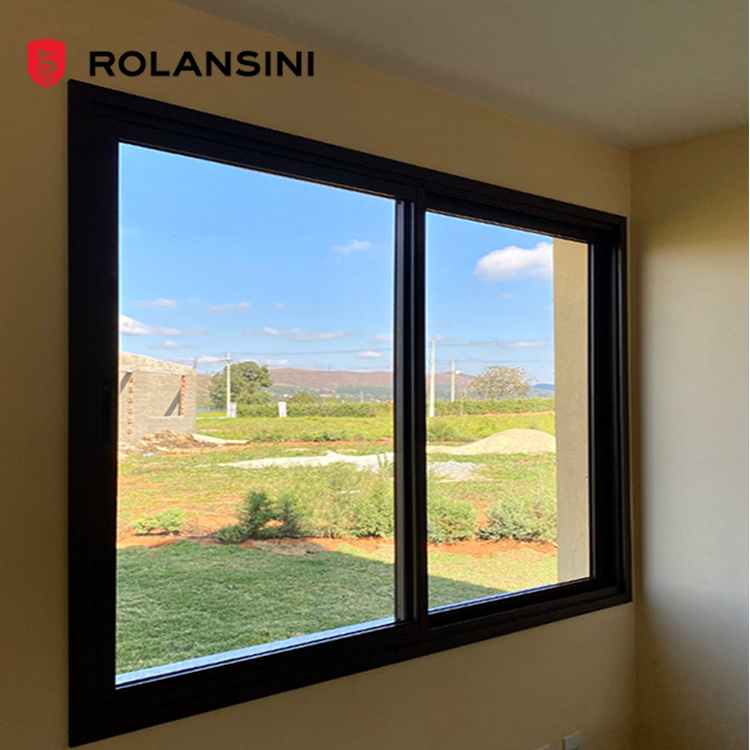

Panoramic Hidden-Sash Design & Ultra-Narrow Frame The T5 sliding window features a 34mm ultra-slim frame with fully recessed sashes, achieving seamless 2.5m-wide glass panels for unobstructed views. Its six-track dual-row structure enhances wind resistance (3.0mm base rail) while the hidden & stepped drainage system prevents water ingress, ideal for typhoon-prone coastal balconies or sunrooms. | Modular Safety & Aesthetic Customization Customize with 8 fade-resistant colors (fluorocarbon-coated), 0.18-0.5mm stainless steel mesh screens, and child-safe upgrades: 115-130mm opening limiters, detachable guardrails, and magnetic-controlled blinds. Optional landscape handrails and foldable drying racks adapt to kitchens/living rooms without compromising minimalist aesthetics. |
Thermal Break Efficiency & 16A Insulated Glass Multi-chamber thermal break aluminum paired with 16Ar + 5mm+5mm double-glazed glass reduces heat transfer by 40% and noise by 25dB. Dual-tone frame options harmonize with indoor/outdoor décor, while warm-edge spacers prevent condensation for year-round comfort in humid climates. | Industrial-Grade Hardware & Durability BOGO AA15 anodized dual lock points, anti-tilt rollers (200kg maximum loading bear capacity), and corrosion-proof 304 stainless steel hinges ensure 50,000+ smooth cycles. Fluorocarbon coatings withstand UV/salt corrosion, backed by a 10-year fade guarantee—perfect for high-traffic kitchens or seaside residences. |
Download
●
2025 Rolansini Window and Door Catalog.pdf;
● T5 Sliding Window Profile Section;
● T5 Sliding Window Measurement&Installation;
● Care & Maintenance Guaidance.
