| Quantity: | |
|---|---|
Product Specifications
| Profile Reinforcement | 1.2-1.6mm |
| Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
| Frame Depth | 110mm |
| Frame Width | 41mm |
| Sash Width | 60mm |
| Sash Depth | 27mm |
| Max. Leaf Width | 410-1100mm(Active), 250-4200mm(Fixed) |
| Max. Leaf Height | 400-1700mm(Active), 400-4200mm(Fixed) |
| Glass Standard | 4G+12A+4G(Active)Double Tempered Clear Glass, 5G+12A+5G(Fixed) Double Tempered Clear Glass, Filled with Argon Gas |
| Glazing Pocket | Open Sash Less than 20mm, Fixed Sash Less than 22mm |
| Glass Spacer | Black Aluminum Spacer |
| Glass Type | Double Pane, Clear, Ultra Clear, Low-e, Laminated, Reflective, Frosted, Obscure...Glass |
| Hardware | China top brand |
| Screens | 304 Stainless Steel Mesh Screens |
| Blinds | No Blinds |
| Type | 3 Track 2 Panel, 3 Track 3 Panel, 3 Track 4 Panel(With child lock) |
| Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA |
| Warranty | 10 Years - Terms and conditions apply |
Product Features

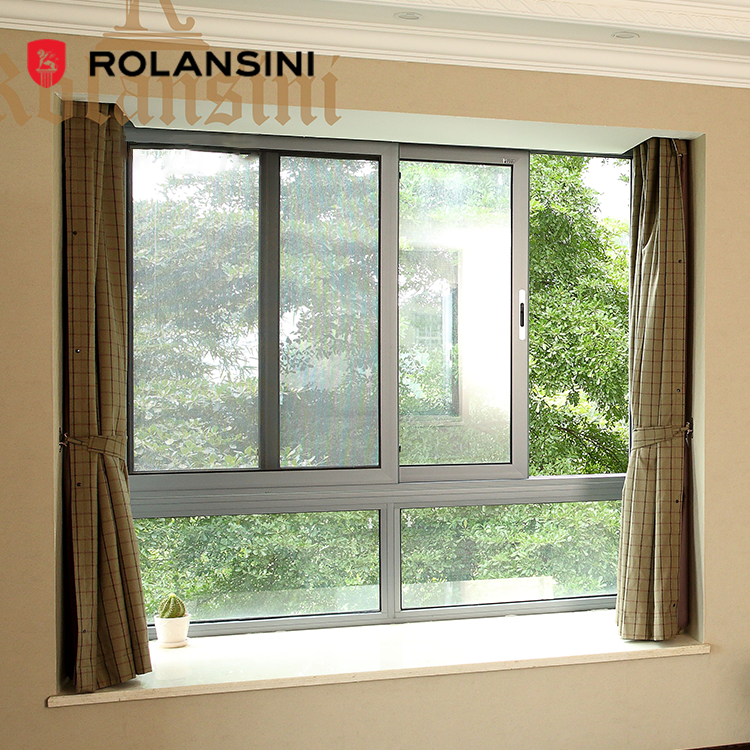

Tailored Safety & Aesthetic Customization The T3 sliding window offers 20+ modular configurations (3-4 tracks, with/without screens) and child-safe accessories like anti-fall locks (110mm opening limit) and detachable guardrails. Customize colors, 4mm+12Ar+ 4mm double-glazed glass, and landscape handrails for balcony/sunroom applications, while 304 stainless steel mesh screens and dual-tone thermal break frames adapt to both indoor décor and exterior facades. | Thermal Break Excellence & Premium Hardware A multi-chamber thermal break aluminum profile with 12Ar insulated glass reduces heat transfer by 40%, paired with sound-damping seals (25dB noise reduction). Enhanced durability comes from AA15-grade anodized finishes, dual anti-theft lock points, and stepped drainage—all supported by industrial-grade pulleys (50,000+ slide cycles) for effortless operation in villa /farmhouse/ apartment/ townhouse. |
Download
●
2025 Rolansini Window and Door Catalog.pdf;
● T3 Sliding Window Profile Section;
● T3 Sliding Window Measurement&Installation;
● Care&Maintenance Guidance.
