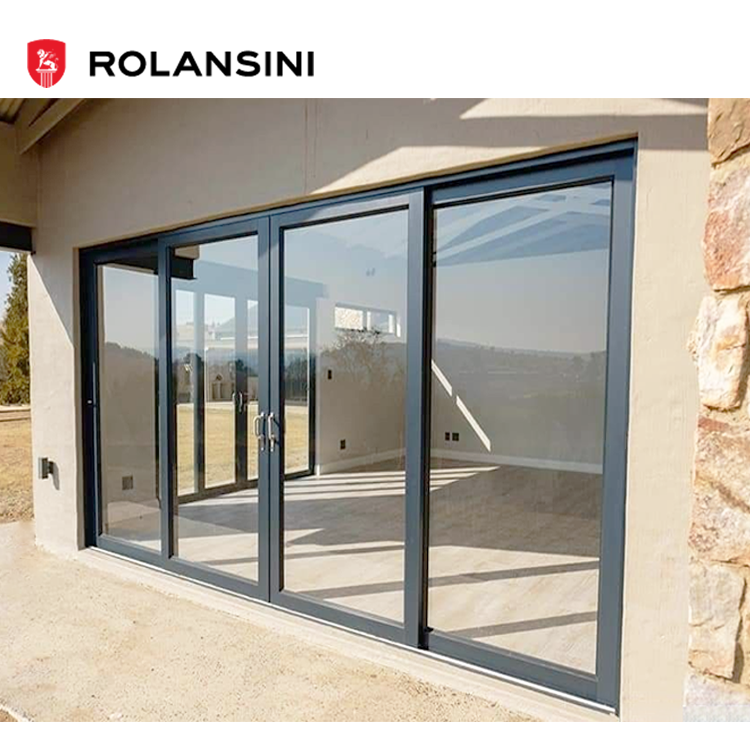

S3 Exterior Non-broken Sliding Door
Key points
Energy Efficient, Increase Airflow, Enhanced Security, Easy Access ,Durability
Benefits
S3 basic sliding door feature a none-thermal bridge properties, designed for office,apartment buildings or residential homes without high requirements for technical fittings.Double glazing with argon gas filled can significantly impact your quality of life with a noise-cancelling atmosphere.
| Quantity: | |
|---|---|
Product Specifications
| Profile Reinforcement | 1.8-2.5mm |
| Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
| Frame Depth | 118mm(2 track)/ 178mm(3 track) |
| Frame Width | 36mm |
| Mullion Depth | 73mm |
| Sash Width | 45mm |
| Max. Leaf Width | 580-1900mm |
| Max. Leaf Height | 1800-3000mm |
| Glass Standard | 30mm (5G+20A+5G) Double Tempered Clear Glass, Filled with Argon Gas |
| Glass Type | Double Layer, Triple Layer, Clear, Ultra Clear, Reflective, Tinted, Flutted, Frosted, Obscure...Glass |
| Glazing Pocket | Less than 32 mm |
| Glass Spacer | Black Aluminum Spacer |
| Hardware | CHINA Brand |
| Screens | 304 / 316 Stainless Steel, Nylon Mesh Screen |
| Blinds | HANS Manual Blinds, Solar Powered Build-in Blinds |
| Grills | External Aluminum Bars, Built-in Decorative Bars |
| Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA |
| Warranty | 10 Years - Terms and conditions apply |
| Application | Patio, Garden, Backyard, Living Room |
Track Types | Special Waterproof Track (40mm), Ultra-Low Track (8.5mm), Frameless-Bottom Steel Track, Elevated Waterproof Track (65mm) |
| Sliding Types | 2 Track 2 Panel, 2 Track 4 Panel, 3 Track 2 Panel, 3 Track 3 Panel, 3 Track 4 Panel |
Product Features
High-Strength Aluminum Construction The 6063T5 alloy framework with PA66GF25 seals achieves Grade 8 wind resistance (GB/T 8478), maintaining structural integrity under 2,500Pa pressure. Continuous gasket alignment ensures IPX4 waterproof rating, while 2.4mm reinforced joints prevent deformation in coastal climates (-30℃~80℃ thermal stability). | Simplified Non-Thermal Break Design Uninterrupted aluminum profiles (1.8mm wall thickness) minimize heat transfer for mild climates, reducing weight by 25% versus thermal break models. Standardized modular assembly suits retrofit applications, delivering more than 10-year service life with minimal maintenance in temperate zones (ΔT≤20℃). |
Cost-Effective Solution Optimized non thermal break design reduces production costs by 30% versus thermal break systems. Pre-assembled components enable 40% faster installation, ideal for mid-range projects requiring reliable weatherproofing without premium insulation demands. | Essential Acoustic Insulation 20Ar insulating glass (5mm+20Ar+5mm) achieves 25dB noise reduction, utilizing standard tempered glass with desiccant-filled aluminum spacers. Basic sound dampening meets residential requirements for urban areas ≤65dB ambient noise, balancing performance with 20% cost savings over triple-glazed alternatives. |
Download
●
2025 Rolansini Window and Door Catalog.pdf;
● S3 Exterior Non-broken Sliding Door Profile Section;
● S3 Exterior Non-broken Sliding Door Measurement&Installation;
● Care&Maintenance Guidance.
