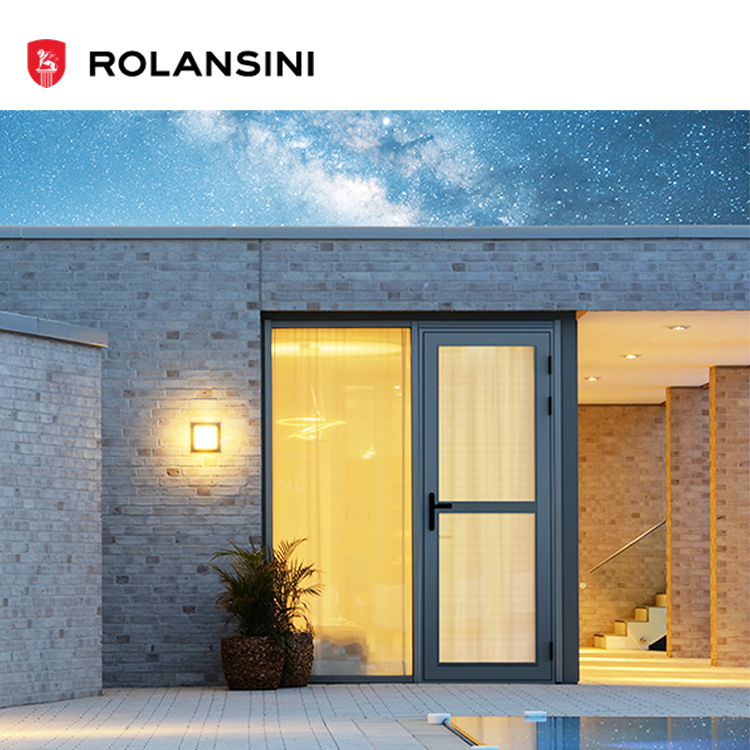

R3M Thermal Break Hinged Door
Key points
Space Saving, Cost Effective, Low Maintenance, Increased Security, Visual appeal
Benefits
R3M hinged door with integrated doors offers a secure, contemporary entry solution that enhances the openness of exterior spaces. The option to be installed by incorporating blinds within them which provides added privacy. Ideal for homes and commercial spaces seeking a balance between security, elegance, and practicality.
| Quantity: | |
|---|---|
Product Specifications
| Profile Reinforcement | 1.8mm |
| Finish Treatment | Powder Coating, PVDF Coating, Wood Grain Transfer |
| Frame Depth | 110mm |
| Frame Width | 26.4mm |
| Sash Width | 83.6mm |
| Max. Leaf Width | 390-1080mm |
| Max. Leaf Height | 1800-2750mm |
| Glass Standard | 5mm+20Ar+5mm Double Tempered Clear Glass, Filled with Argon Gas |
| Glass Type | Double Layer, Clear, Ultra Clear, Laminated, Reflective, Tinted, Flutted, Frosted, Obscure...Glass |
| Glazing Pocket | Less than 40 mm |
| Glass Spacer | Warm Edge Aluminum Spacer |
| Hardware | German WEHAG |
| Screens | 304 / 316 Stainless Steel, Nylon Mesh Screen |
| Blinds | HANS Manual Blinds, Solar Powered Build-in Blinds |
| Grills | Built-in Decorative Bars |
| Standard | Comply with ISO9001, CE, NFRC, AS2047, CSA |
| Warranty | 10 Years - Terms and conditions apply |
| Application | Patio, Garden, Backyard, Living Room, Commercial(Entry) |
Track Types | Special Waterproof Track (53.2mm), Ultra-Low Track (21mm) |
| Opening Types | Out Swing Hinged Door, Inward Open Hinged Door, French Door, Door with Sidelight/ Toplight |
| Smart Customization | JianXin Smart Lock (fingerprint/ password/ IC card/ mechanical key/ APP/ remote control/ wifi/ bluetooth) |
Product Features
Versatile Configuration Options Multiple modular designs (including French Doors/ Sidelight Doors/ Corner Doors/ Doors with windows) accommodate openings from 600-2,400mm. Integrated screen frame maintains 85% ventilation efficiency while supporting 110kg door leaf. Standardized mullion system allows installation in ≤2 hours with an alignment tolerance of ±1.5mm (EN 14351-2 compliant). | Ergonomic Handle System Wehag 6061-T5 handle (25,000+ cycle tested) features 180° reversible orientation and 92mm universal backset. Anodized aluminum construction (AA15 grade) withstands ISO 9227 300h salt spray, while the ergonomic profile requires ≤3N operating force (DIN 18257 certified). |
Quiet high-capacity hinges Stainless steel bushing hinge can achieve more than 100,000 cycles (EN 1935 Class 1) with operating noise ≤25dB. Aluminum alloy arm supports 150 kg load through stainless steel clamps, maintaining 0.5° angle stability within 180° arc. Integrated 25N/m torque limiter prevents severe impact caused by wind. | Enhanced sealing and surface treatment Two-layer EPDM gasket can achieve 6-level airtightness (EN 12207) and 350Pa waterproofness. 20A argon glass (U=2.0 W/m²K) combined with PA66GF25 insulation strips, fluorocarbon coating (GSB 05-1426-2018) can still maintain ΔE≤1.5 color after 10 years of accelerated weathering (ISO 16474-2). |
Download
●
2025 Rolansini Window and Door Catalog.pdf;
● R3M Thermal Break Hinged Door Profile Section;
● R3M Thermal Break Hinged Door Measurement&Installation;
● Care&Maintenance Guidance.
